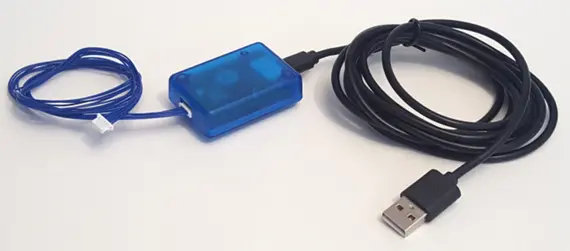

Computer Adapter - SA1
SA1 is a compact USB interface for Sparvio, enabling log file access, sensor readings, system setup, firmware updates, and battery charging. It powers Sparvio via USB or external supply, and connects only during data retrieval. Designed by Sparv Embedded AB, SA1 is essential for using the modular Sparvio system.

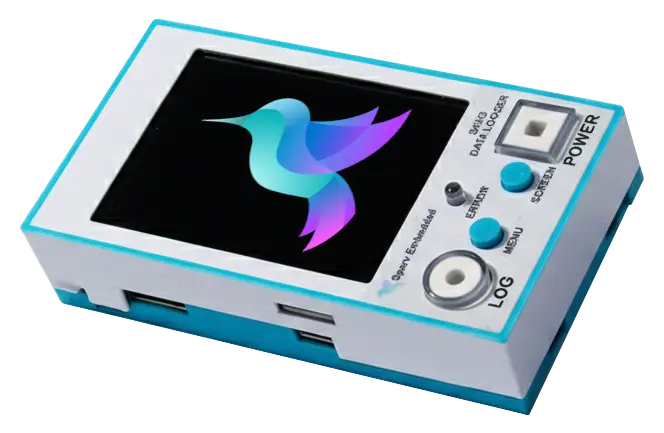

Smart Logger
SKH3 is Sparv Embedded’s second-generation airborne data logger, designed for compact, reliable, and extensible performance. With built-in GPS, barometers, touchscreen interface, and robust connectivity (USB-C, Wi-Fi, Bluetooth), it supports internal and external sensors via SSP or third-party protocols. SKH3 simplifies troubleshooting, offers flexible power options, and logs to flash or microSD. A plug-in extension card adds modularity without cluttering the main board. The included PC software enables real-time data visualization and sensor configuration. Developers can customize firmware, hardware, and Python-based PC programs. SKH3 is ideal for UAVs and environmental studies, combining low SWaP with high usability and integration flexibility
Get the SKH3 Datasheet here
Visit the product page

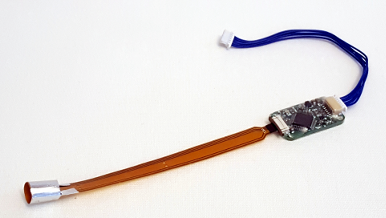

Temperature & humidity - SKS1
SKS1 is a lightweight temperature and humidity sensor for UAVs, featuring a flexible arm for optimal placement in undisturbed air. It offers plug-and-play integration via Sparvio SSP, replaceable sensor elements, and low power consumption. Though slower than SKS2, it’s cost-effective and ideal for modular environmental measurements.
Get the SKS1 Datasheet here

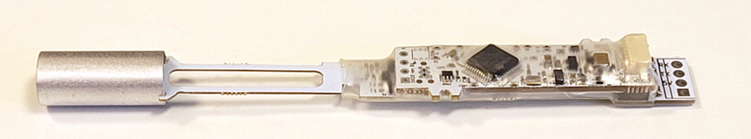

Fast response temperature & humidity - SKS21
SKS21 is a fast-response temperature and humidity sensor designed for UAVs and miniature radiosondes. It features dual thermistors and a capacitive humidity element with minimal self-heating, even at low pressure. Sampling rates range from 1–50 Hz, with high-resolution data output. The modular design includes detachable PCBs, multiple communication options (SSP, UART, RS232, USB), and a protective tube that doubles as a solar shield. SKS21 supports firmware upgrades, calibration, and real-time data streaming via Sparvio SA1. Future features include OLED display and heated humidity sensing. Compact and lightweight, SKS21 is ideal for precision environmental measurements in airborne and lab applications.
Get the SKS21 Datasheet here

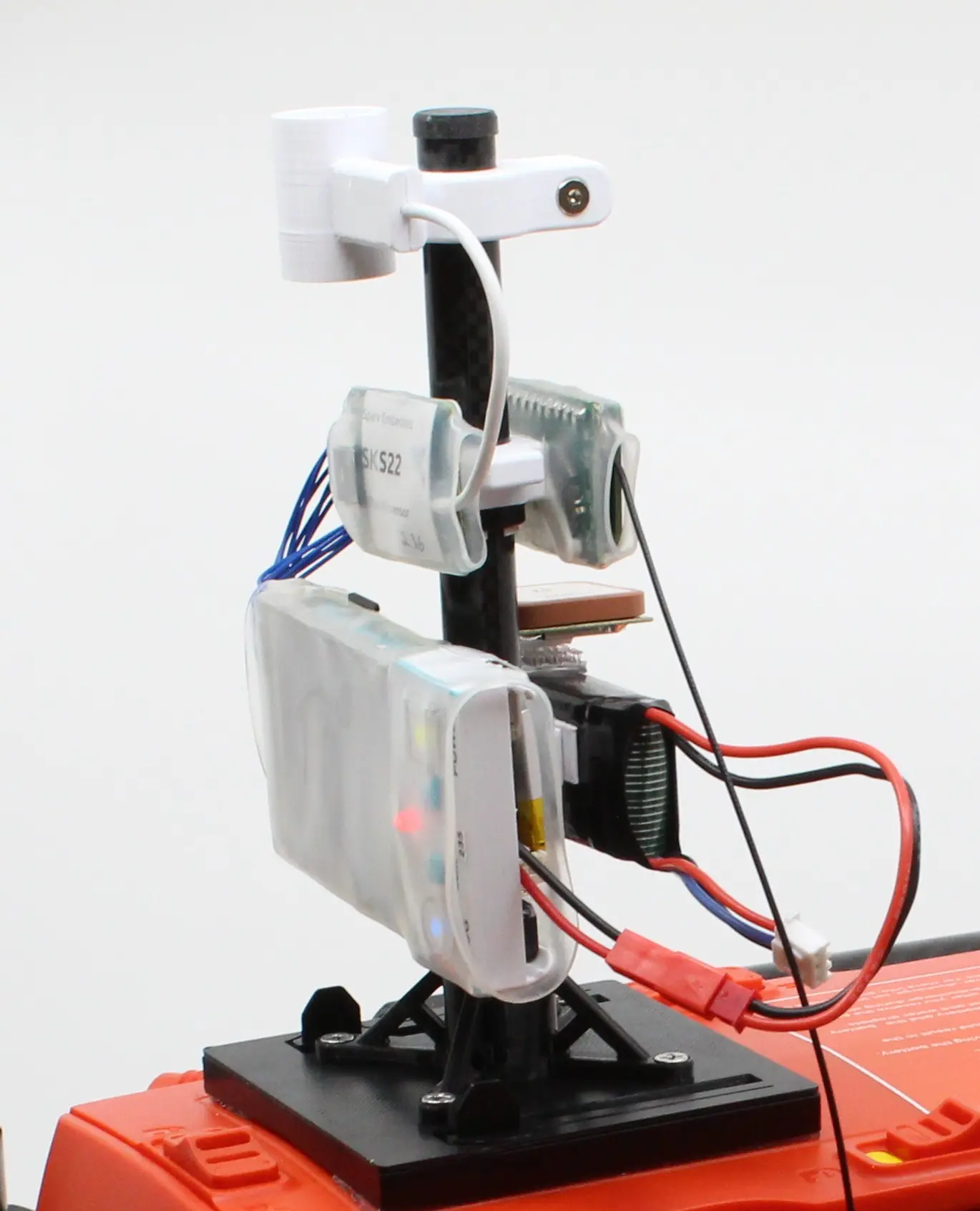

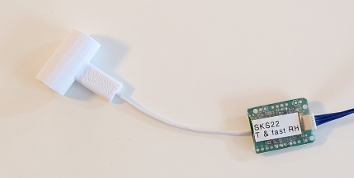

Temperature and fast-response humidity sensor - SKS22
SKS22 is a fast-response temperature and humidity sensor for UAVs, featuring a PT1000 and capacitive polymer element. It samples up to 10 Hz, communicates via Sparvio SSP, and includes LED status signals. Compact and lightweight, it’s housed in a protective shield for accurate, real-time environmental measurements.
Get the SKS22 Datasheet here

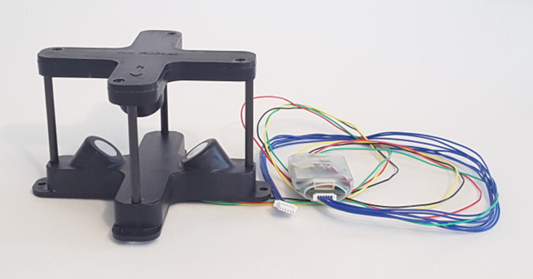

Wind sensor - SKS31
SKS31 is a lightweight 3D ultrasonic anemometer designed for rotary-wing UAVs. It measures wind speed (0–50 m/s), direction, temperature, humidity, pressure, tilt, and heading with high precision. Sampling rates range from 1–10 Hz, and data is communicated via Sparvio SSP. The sensor includes an SKD1 adapter for voltage conversion and calibration, and can be powered via USB or external supply. Calibration tools for wind and compass readings are provided through Sparvio Toolbox. Compact and modular, SKS31 integrates seamlessly into the Sparvio system, making it ideal for airborne environmental monitoring, lab experiments, and educational applications requiring accurate multi-parameter wind data.
Get the SKS31 Datasheet here

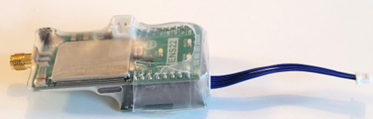

5G Signal Strength - SKS50
SKS50 is a compact 5G signal strength sensor for UAVs, using the Thales ENS22 modem to measure RSRQ, RSRP, RSSI, and SNR via NB-IoT. It supports multiple frequency bands and updates data every 2.5 seconds. Mounted with a pole fixture, it connects via Sparvio SSP and integrates seamlessly into modular Sparvio systems. LED indicators show connection status and diagnostics, making SKS50 ideal for airborne network monitoring.
Get the SKS50 Datasheet here

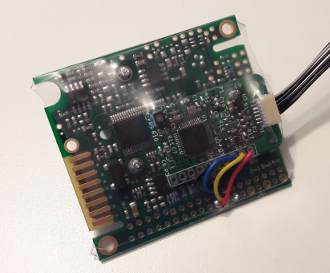

CO2 Sensor - SKS6
SKS6 is a compact CO₂ sensor using non-dispersive infrared (NDIR) technology, compatible with the Sparvio system. It measures up to 5000 ppm with 1 ppm resolution and ±3% accuracy. Sampling at 2 Hz, it operates from 4.5–14 VDC and suits UAVs, labs, and environmental monitoring applications.
Get the SKS6 Datasheet here
Particular Matter - SKS82
SKS82 is a laser-based particulate matter sensor for UAVs, measuring PM1 to PM10 and offering 24-bin histograms. It samples at configurable intervals, with a built-in fan ensuring accurate airflow. Integrated with Sparvio SSP, it’s ideal for airborne environmental monitoring and lab use, with robust voltage protection.
Get the SKS82 Datasheet here
